5-Axis CNC Routing Software

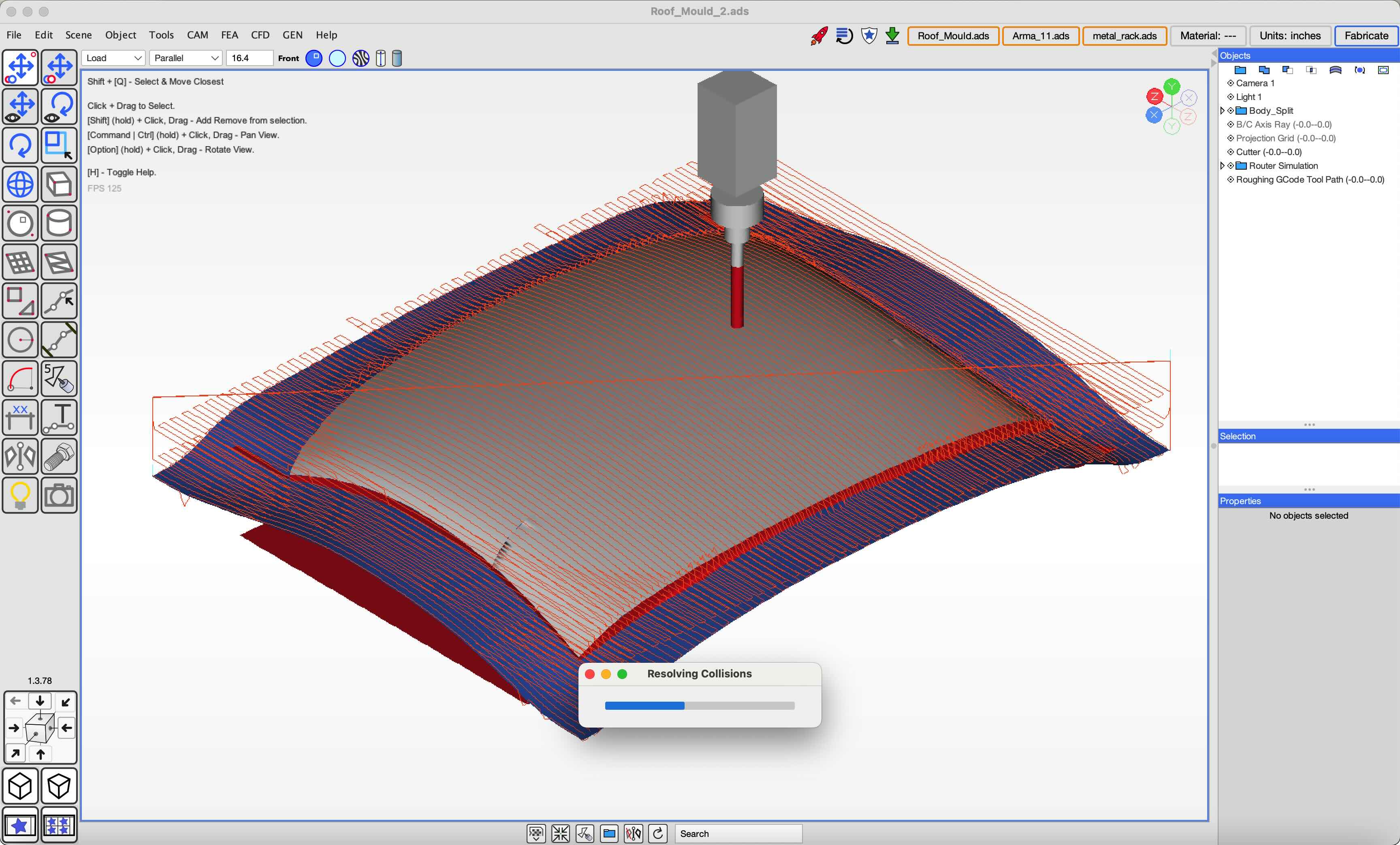

ADS enables fast, accurate design and manufacturing of contoured surface projects using cost-effective CNC routing on both 3-axis and 5-axis head-head (B/C) machines. You can model projects directly in ADS or import existing designs and generate production ready CNC G-code for fabrication.

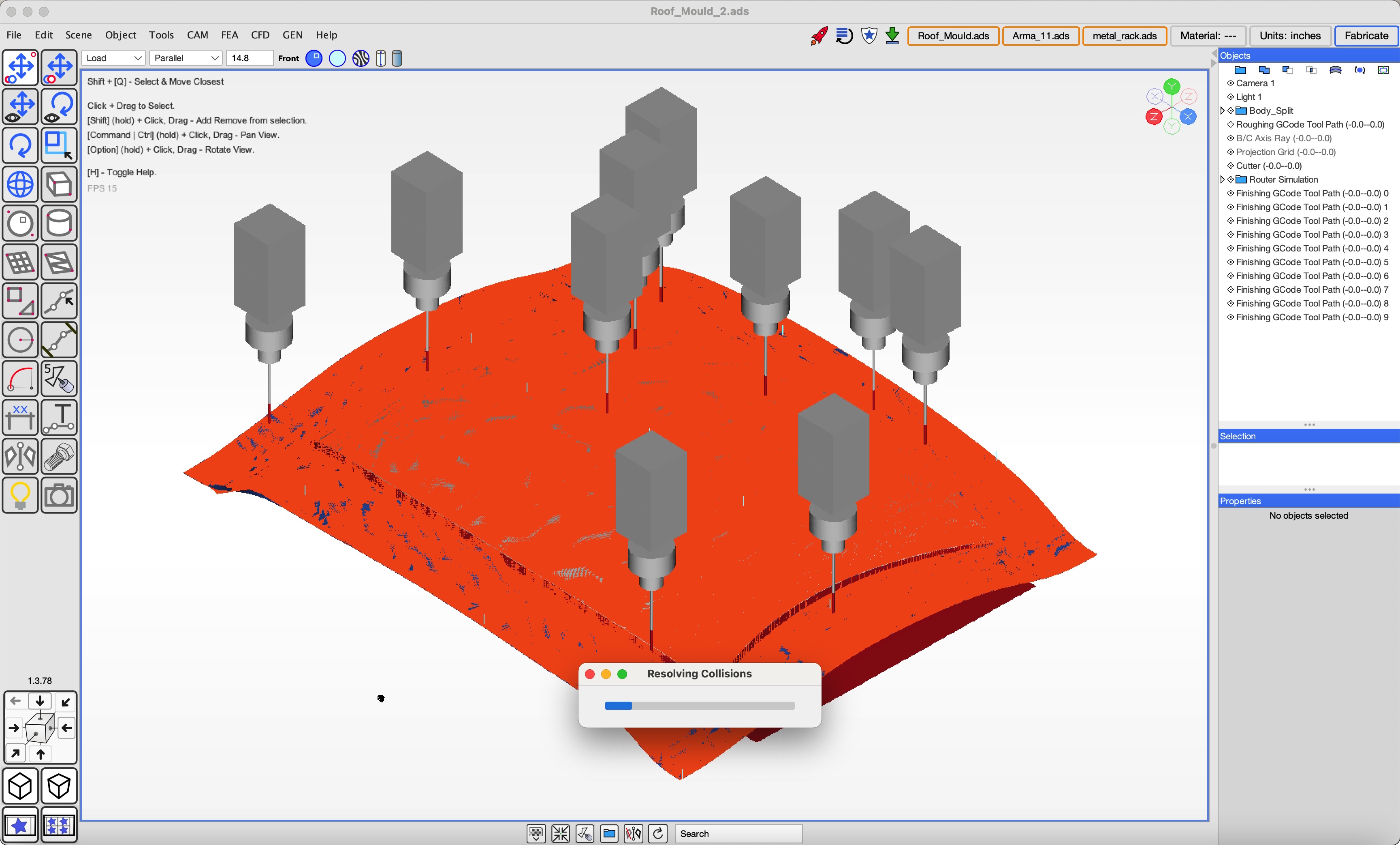

For 5-axis workflows, ADS uses a proven 3+2 machining approach, allowing precise control of router orientation by defining tool angles for each machining pass. This delivers reliable results while keeping programming efficient and predictable on head-head B/C platforms.

We believe CNC automation should be accessible to more builders, fabricators, and small manufacturers. ADS simplifies complex surface machining, enabling faster design cycles and opening the door to new, cost-effective business opportunities.

ADS supports importing designs from leading CAD applications, including Fusion 360 and SolidWorks, so you can integrate seamlessly into existing workflows or design entirely within ADS.

Unlock greater productivity and take on more advanced projects by purchasing ADS Manufacturing 2 or ADS Unlocked product keys. You can download and use the full design features today with the ADS Free tier.

Go to the ADS Product Page.

5-Axis GCode Videos

For a walkthrough of some of the features check out the following tube related videos.

ADS 1.2.89 5-Axis GCode support for HEAD-HEAD machines. STEP file format supported import and exports. Mirror mesh supports Cube, Sphere and Cylinder.
Router Testing Preview of our router development process.

Go to the ADS Product Page.

Hardware

ADS 5 Axis software generates tool cutting paths for four and five axis (Double Pivot) Head - Head B/C type machines which is a specific subset of available machines. ADS 5 Axis software does not support machines based on pitching swivel head, pitching work table, rotary table Pivoting Spindle Head type.

Arma has built a custom 5 Axis HEAD-HEAD B/C router to cut blocks of foam measuring 4x8x2 feet and also be small enough to fit in an eight foot ceiling hight shop with the ability to transport it through a garage door. We plan on publishing plans to recreate this machine for others to replicate. More details will be available soon.

Commercial routers that may be compatible with ADS 5 Axis tool pathing are listed below:

• ShopBot 5-Axis. This router is not endoursed by Arma. Cutting Area: 860x860x610mm. Price $72,240.00 USD.
• StyleCNC STM1325-5A. This router is not endoursed by Arma. Cutting Area: 1300x2500x950mm. Price $110,000.00 USD.
• OmniCNC 5-Axis CNC Router. This router is not endoursed by Arma. Cutting Area: 1220x2440x950mm. Price undisclosed.
• AWEA AG5-1620. This router is not endoursed by Arma. Cutting Area: 1600x2000x1000mm. Price undisclosed.
• Apec G-2540. This router is not endoursed by Arma. Cutting Area: 2500x4000x1000mm. Price undisclosed.
